JubileeTV Console
Overview

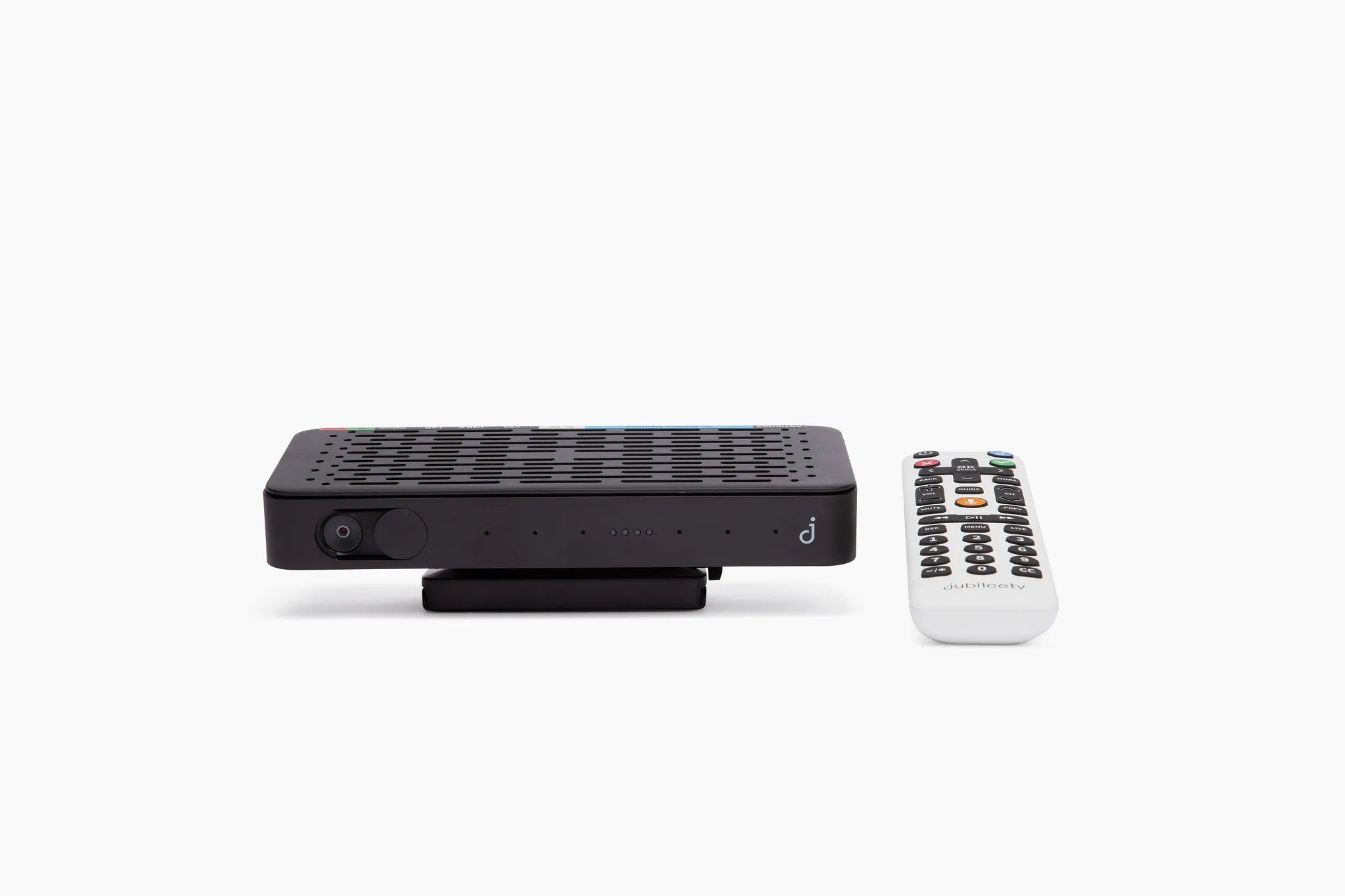

The JubileeTV Console powers JubileeTV on the TV End User's TV. HDMI cables from source devices are connected to the Console, and an HDMI cable is connected to the TV from the Console.
Included Hardware
The JubileeTV Console Kit includes the below hardware:
- JubileeTV Console, power supply and mounting hardware
- JubileeTV Remote
- 1 JubileeTV Remote cover
- JubileeTV Smart Plug
- 1 HDMI cable
- 1 IR blaster
- 1 AC power Y-splitter
Technical Specifications
Connections
The table below gives an overview of the ports on the JubileeTV Console. Ports are listed left-to-right.
Port | Functionality |
|---|---|
ANT/COAX | This port is non-functional and is reserved for future functionality |
HDMI IN 1 | HDMI port (IN) for a source device |
HDMI IN 2 | HDMI port (IN) for a source device |
HDMI IN 3 | HDMI port (IN) for a source device |
MICRO SD | This port is non-functional and is reserved for future functionality |
HDMI OUT | HDMI port (OUT) to connect Console to TV |
USB | This port is non-functional and is reserved for future functionality |
USB-C | This port is non-functional and is reserved for future functionality |
LAN | Ethernet port to connect Console to a wired network |
OPTICAL | This port is non-functional and is reserved for future functionality |
IR | IR blasters port |
DC 12V | Power supply port |
JubileeTV Remote
The JubileeTV Remote is a universal remote that controls the JubileeTV Console as well as your source devices and TV. The JubileeTV remote connects to the Console via bluetooth, which allows the remote to have an onboard microphone for video calling and onboard speaker to use the Find My Remote functionality. The JubileeTV remote is powered by 2 AA batteries.
Smart Plug
The Smart Plug is used to measure the power consumption of the TV, which allows JubileeTV to determine whether or not the TV is on. It is important that the TV is plugged into the Smart Plug and then the Smart Plug is plugged into a power source, such as an outlet or power strip.
The Smart Plug connects to the JubileeTV Console using bluetooth.
Installation Details
See Installing the JubileeTV ConsoleInstalling JubileeTV Console for more details.
Frequently Asked Questions
Can the JubileeTV Console control the streaming apps on my TV? No, the JubileeTV Console can only control your TV's power, volume up/down and mute. This is due to the manner in which Smart TVs build their own firmware. Please note that you can use a Smart TV with JubileeTV, you just will need a separate source device (such as a Roku) to watch streaming apps through JubileeTV.
